KNX DALI-2 Gateway Colour, 1-gang
30064 1S DA2 R · One DALI system, DIN-rail mounted
- DALI devices
- up to 64
- Groups
- up to 32
- Scenes
- 16
- Colour
- DT8: colour temp., RGB, RGBW
- Width
- 4 rail units (72 mm)
Control · JUNG · ONE Light · ComfortClick
KNX DALI Lighting Control
Dim every light individually, recall scenes and tune colour temperature from the same KNX keypads and app that run the rest of the building. Dedott supplies the complete KNX-DALI lighting chain from one distributor — JUNG DALI-2 gateways, ONE Light DALI drivers and fittings, and ComfortClick visualisation — from its Dubai office to integrators, contractors and consultants across the UAE and the GCC.
The Basics
What Is DALI, and How Does It Work With KNX?
DALI: lighting only
DALI is a lighting control protocol. Every LED driver gets its own address, so each light can be dimmed on its own and reports back faults such as a failed lamp.
KNX: the whole building
KNX runs lighting, air conditioning, blinds and more from one system — but it does not talk to DALI drivers directly. KNX acts as the backbone that links several DALI lines together.
The gateway in between
A KNX DALI gateway in the distribution board translates between the two. One DALI line handles up to 64 devices, so larger floors use more gateways or a 2-gang model.
How It Connects
One Lighting Chain, One Distributor
Every link in the chain comes from a brand Dedott distributes, so the products are matched before they reach site.
JUNGKNX keypadPush-buttons, room controllers
→
KNXKNX busThe building backbone
→
JUNGKNX DALI-2 gatewayIn the distribution board
→
ONE LightDALI driverOne address per driver
→
ONE LightLED fittingSpots, tracks, downlights
ComfortClick connects to KNX for the app and visualisation — lighting scenes on phones, tablets and wall panels.
JUNG
KNX DALI-2 Gateways
DALI-2 certified, KNX Data Secure, and ready for tunable white and colour (DALI Device Type 8). DALI-2 sensors such as push-buttons and presence detectors can be used as inputs.
KNX DALI-2 Gateway Colour, 2-gang
30128 1S DA2 R · Two DALI systems, for larger floors and villas
- DALI devices
- up to 2 × 64
- Groups
- up to 2 × 32
- Scenes
- 16 per DALI system
- Colour
- DT8: colour temp., RGB, RGBW
- Width
- 4 rail units (72 mm)
ONE Light
DALI Drivers & DALI Light Fittings

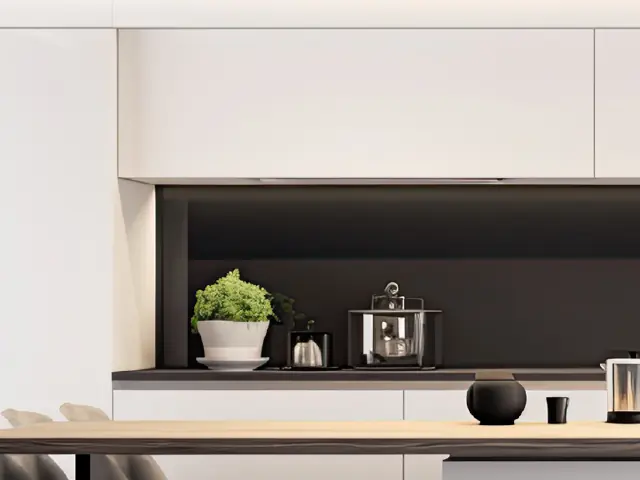

The end of the chain: DALI-dimmable LED drivers and DALI track and magnetic-track fittings, including DT8 tunable-white models.
89009L
DALI & Push-to-Dim constant-current driver
- Dimming
- DALI, Push-to-Dim
- Output
- 350–700 mA (DIP switch)
- Use
- Single spots
89040L
DALI & Push-to-Dim driver
- Dimming
- DALI, Push-to-Dim
- Type
- LED driver
- Use
- Spots & downlights
89050TLD
50 W multi-dimming driver
- Dimming
- Triac, DALI, Push-to-Dim, 1–10V
- Output
- 200–1500 mA
- Use
- Flexible stock item
42106BL
22 W adjustable DALI track light
- Track
- 48V magnetic MINI / MIDI / MAXI
- Control
- DALI
- Use
- Retail, galleries, living areas
65670CTL
40 W DALI tunable-white track spot
- Control
- DALI DT8, CCT tunable
- Track
- DALI 3-phase track
- Use
- Retail, hospitality
40001AL / 40002AL / 40003AL
Square 3-phase + DALI track, 1 / 2 / 3 m
- Rating
- 16 A
- Lines
- 3-phase + DALI
- Use
- Track lighting runs
ComfortClick
App & Visualisation on Top
ComfortClick bOS connects to the KNX system and turns it into one app: lighting scenes, dimming and colour temperature alongside air conditioning, blinds and other building systems — on phones, tablets and wall-mounted screens.
See ComfortClick bOS
Where It’s Used
Built for Projects
Residential towersVillasHotelsOfficesRetail & showroomsGalleries
One supplier
Gateways, drivers and fittings from one distributor — one quotation, one point of contact.
Matched products
Gateway, driver and fitting choices are checked together against your lighting layout and BOQ.
Presales support
Help planning DALI lines, groups and gateway quantities for your drawings, plus regional stock and after-sales support.
FAQ
Common Questions
What is KNX DALI lighting control?
It combines two standards. DALI controls each light individually, with dimming, scenes and lamp-failure feedback. KNX controls the whole building and links several DALI lines together. A KNX DALI gateway in the distribution board translates between the two, so the same KNX keypads and app control every light.
How many lights can one DALI gateway control?
One DALI system handles up to 64 DALI devices in up to 32 groups. The JUNG KNX DALI-2 Gateway Colour 1-gang (30064 1S DA2 R) controls one DALI system, and the 2-gang version (30128 1S DA2 R) controls two, for up to 2 × 64 devices.
Can KNX DALI control tunable white and colour?
Yes. The JUNG KNX DALI-2 Gateway Colour sets colour temperature and RGB or RGBW colour on luminaires with DALI Device Type 8, such as ONE Light DT8 tunable-white fittings.
Do you supply the DALI drivers and light fittings too?
Yes. ONE Light makes DALI-dimmable drivers such as the 89009L, 89040L and 89050TLD, plus DALI track and magnetic-track fittings, so the whole lighting chain comes from one distributor.
Can the lighting be controlled from an app?
Yes. ComfortClick connects to KNX and adds the app and visualisation, so lighting scenes can be controlled from phones, tablets and wall panels together with air conditioning, blinds and other building systems.
